Case study: indoor aircon leak caused by a clogged drain-hose check valve
An indoor aircon unit leaked because debris blocked a check valve installed along the outdoor condensate drain hose.
Short Answer
In this case, the indoor-unit leak was caused by a blockage inside a check valve fitted along the outdoor drain hose. Debris in the valve restricted condensate flow and allowed water to back up toward the indoor unit.
Checklist
- ・The reported symptom was water leaking from the indoor unit
- ・A check valve was installed along the outdoor drain hose
- ・Debris was visible after the valve was removed
- ・The complete outdoor drainage route matters when diagnosing a leak
Photos from this case
The first symptom was water leaking indoors
During cooling and dehumidifying, condensate should leave the indoor unit through the drain hose. Because water was appearing indoors, the inspection followed the drainage route from the unit to the outdoor outlet.

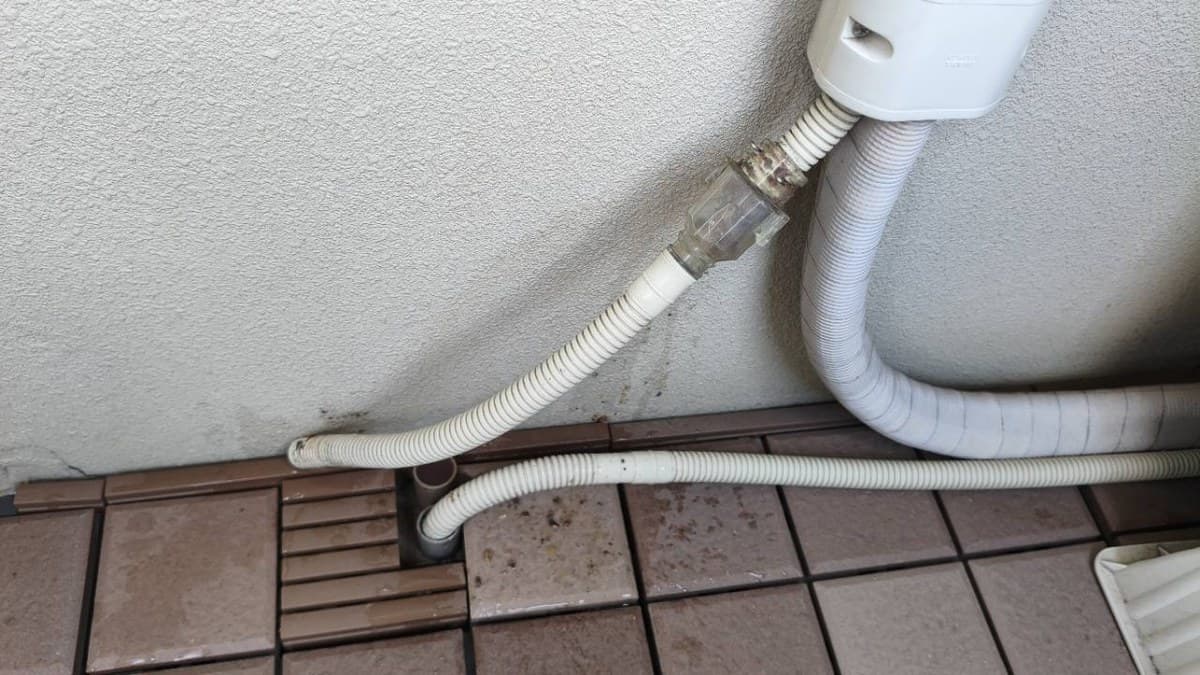

A check valve was fitted to the outdoor drain hose

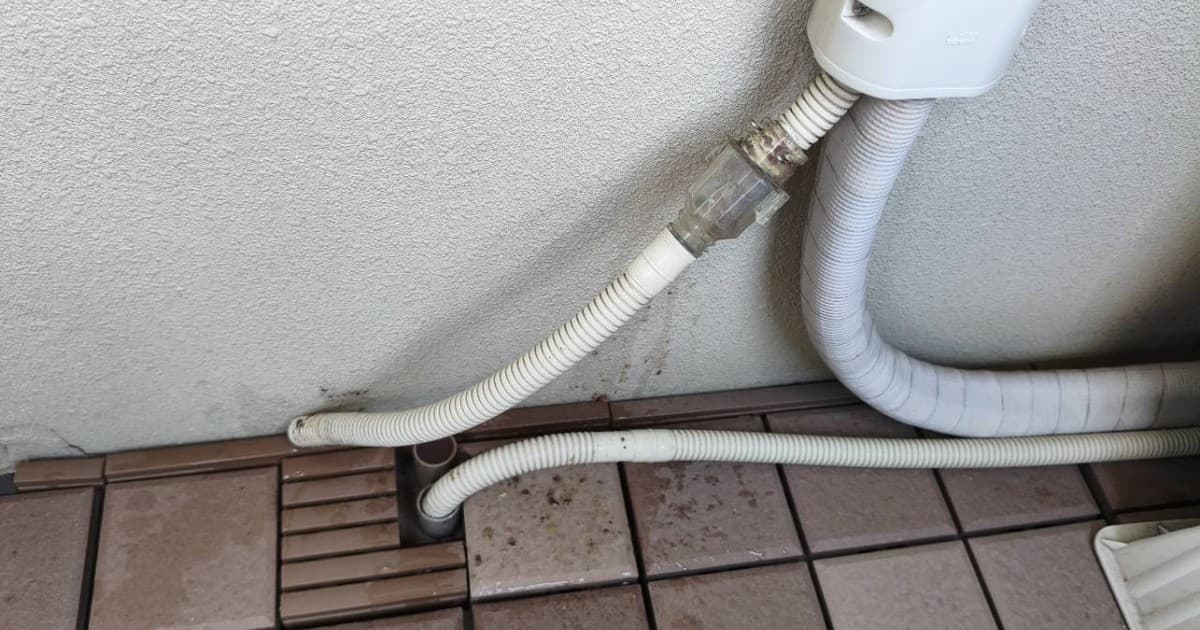

A transparent check valve was installed partway along the outdoor hose. These valves can help reduce the entry of outside air or insects, but accumulated debris can also restrict drainage.

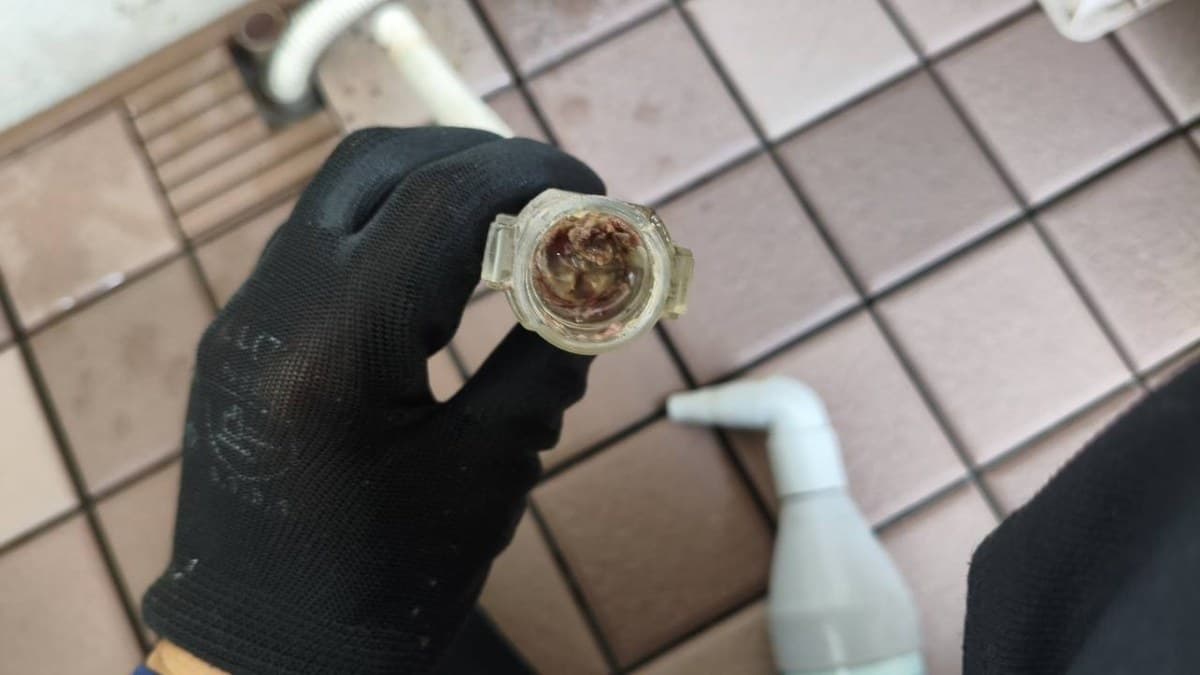

The removed valve contained a visible blockage
After the valve was removed, debris was visible inside it, as shown in the photo. The restricted passage prevented condensate from draining smoothly and caused water to back up toward the indoor unit.
What you can check safely
Stop the air conditioner and protect flooring and furniture first. From outdoors, visually check the hose outlet and any valve along the route. Do not disassemble the indoor unit or force tools into the hose. Arrange an inspection if the cause is unclear or leakage continues.
